Section 15 - Backup / Restore Microsoft Exchange Server

This section describes in details how to backup and restore Microsoft Exchange Server with OBM.

15.9 Restore Microsoft Exchange Server 2013

Refer to the following instructions to restore Microsoft Exchange Server 2013:




• Prepare the operating system for the Exchange Server restore (if required).



Install the original version of Windows and Exchange Server (with the same level of service pack installed as in the original system).




• Restore Windows Active Directory (if required).



Restore the System State data from OBS, and then restore the System State using WBAdmin.exe.

Refer to the "How to restore Windows System State" chapter for detailed instruction.




• If you are using Exchange server 2013 on Windows server 2012, please install ".Net Framework 3.5 Features" under Server Manager > Dashboard > Add Roles and Features Wizard > Feature Page




• Install OBM (if required).



Refer to the "Installing OBM" chapter for detailed instruction.




• Startup the [Microsoft Information Store] services from Windows Services.
• Continue with the following sections for restore to the original Exchange server, or to a new Exchange server.



Restore Exchange Database to Original Location

To restore Exchange database to the same Exchange server:




• Login to the backup application's user interface.




• Click on the [Restore] button on the left panel.
• Select the backup set to be restored, and [Next].

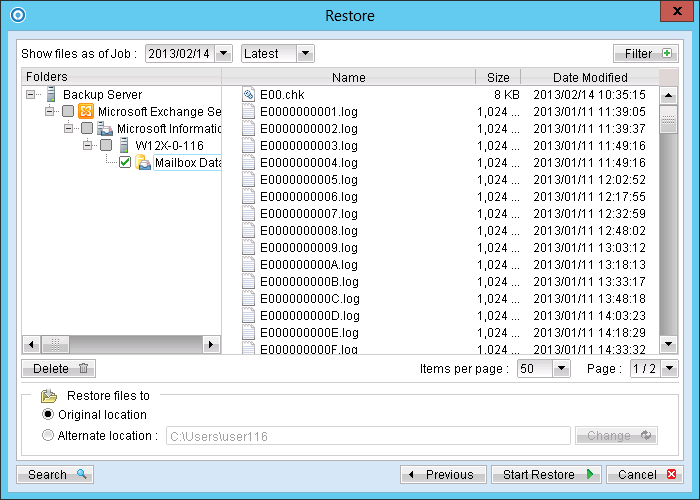

• Expand the server tree, select the database to be restored, and [Original Location] for the [Restore files to] option.




• Press the [Start Restore] button to begin the restore process.
• The restore process is now completed.




Restore Exchange Database to Alternate Location





• Login to the backup application's user interface.





• Click on the [Restore] button on the left panel.
• Select the backup set to be restored, and [Next].

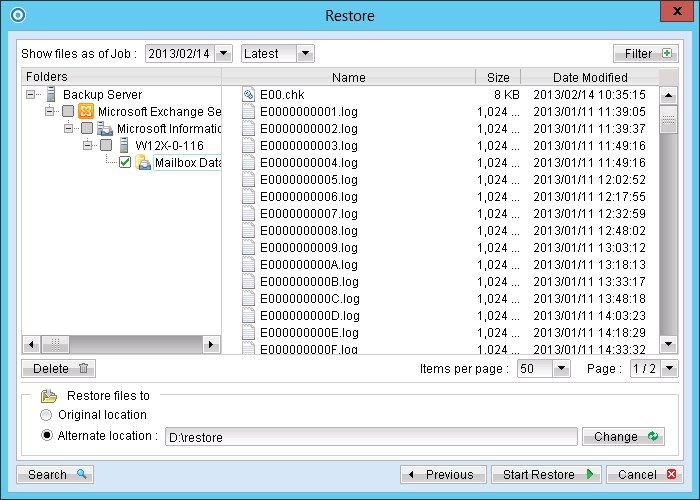

• Click on the database to be restored, and select [Alternate location] and browse to the restore destination folder.




• Please ensure the directory structure is the same as it appears in the File Explorer:

-->[Restore Destination]
--------->[Microsoft Exchange Server]
---------------->[Microsoft Information Store]
------------------------>[components.xml]
------------------------>[writers.xml]
